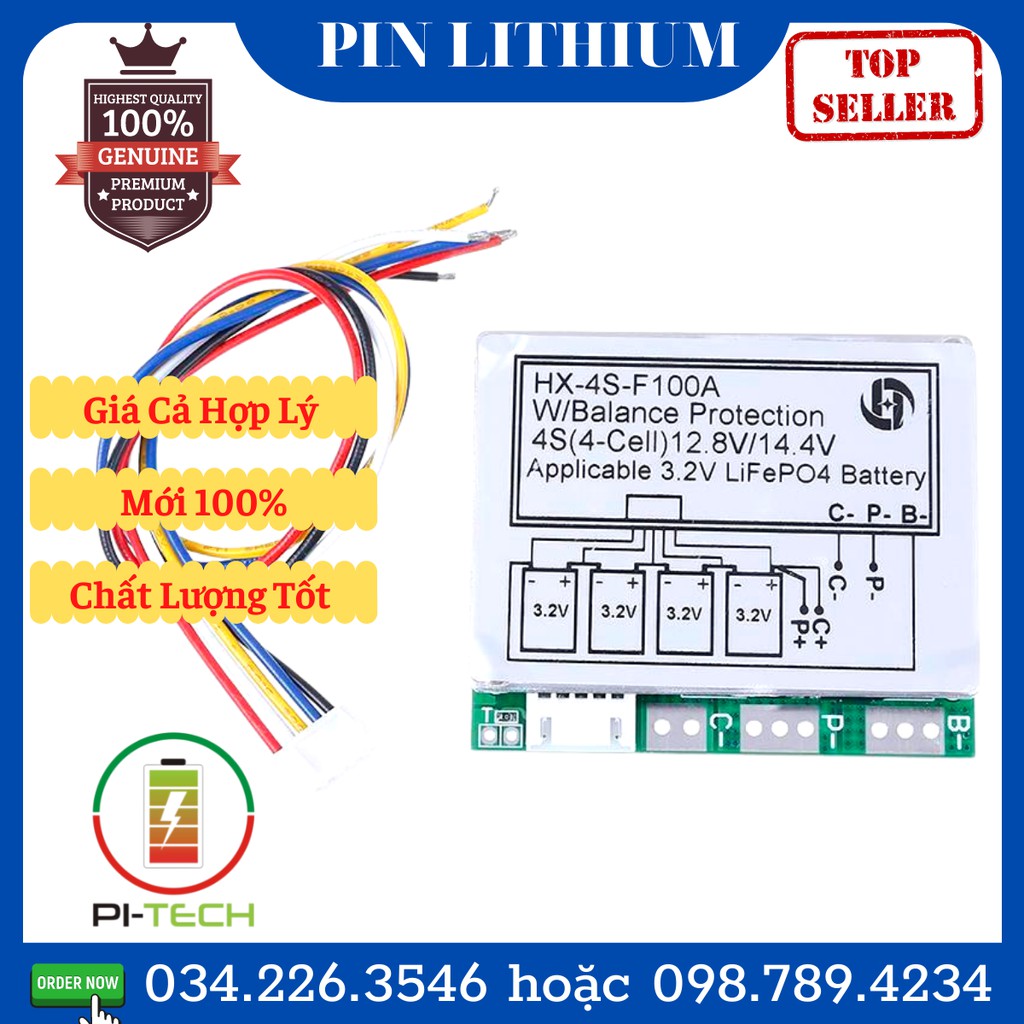

Mạch bảo vệ pin 3.2v HX-4s-F100a (Bản tiếng Anh)

Chi Tiết Sản Phẩm

• Danh mục: Dụng cụ & Thiết bị tiện ích / Dụng cụ & Thiết bị tiện ích
• Nhà cung cấp: PI-TECH
• Kho hàng: Hải Phòng

Mô tả Sản Phẩm

Mạch bảo vệ sử dụng 10 mosfet bảo vệ 100a 12,4/14,8v
Dòng xả liên tục 50A
Dòng xả Max 100A
Dòng bảo vệ 120A
Tự động cắt điện ra khi điện áp trên cell bị tụt
Xả cân bằng giữa các cell
*****************************************************************
Description:
100% Brand New and High Quality
This product is 4 string 12.8V LiFePo4 Lithium iron phosphate battery power protection board. With a balanced, same port 45A discharge. With heat sink.
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection.
Products with 10 MOS tube, powerful cooling aluminum, continuous current limit of 100A. Applicable to inverter, xenon lamp, solar street lights and other 4S battery pack.
T point Description: plus a normally closed temperature sensor switch can expand the role of temperature protection, need to remove the solder joint next to the 0R resistance.
Note: 3A current above the discharge products, the battery discharge rate to 3C or more.
Magnification calculation formula: 1C magnification of the battery, 2000 capacity is equal to 2AH * 1 = 2A upper limit current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A upper working current.
In the use of the battery will heat is Battery magnification is not applicable, this situation can not be long-term use, the battery will soon be damaged.

Specifications:
Discharge:
Continuous Discharging Current: 100A
Instantaneous Discharge Current: 120A
Charge:
Charging Voltage: 14.8V (Switching power 15-16V)
Charging Current: 10A (MAX)
Overcharge Protect:
Over-charge Detect: 3.75±0.05V
Protect Delay: 1300MS
Over-charge Release: 3.60±0.05V
Balance:
Detect Voltage: 3.60±0.05V
Release Voltage: 3.59±0.05V
Balance Current: 65mA
Over-discharge Protect:
Over-discharge Detect: 2.1±0.08V
Over-discharge Detect delay: 145S
Release Voltage: 2.3±0.1V
Over-current Protect:
Detect Voltage: 200mV
Detect Delay: 20mS
Current Detect: 120±10A
Release Condition: Cut Load
Short-circuit Protect:
Protect Condition: Cut Load (Not short connect)
Detect Delay: 300uS
Release Condition: Cut Load
Inner Resistance: ≤20mΩ
Self-Consumption:
Working Current: ≤30uA
Sleep Current (when Over-discharge): ≤20uA
Working Temperature Range: -30+80℃
PCB Board Size: 7x6cm/2.76x2.36"
Quantity: 1 Pc

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package Includes:
1 x BMS Protection Board for 12V 14.8V 4S 100A LiFePO4 Battery with Cable
